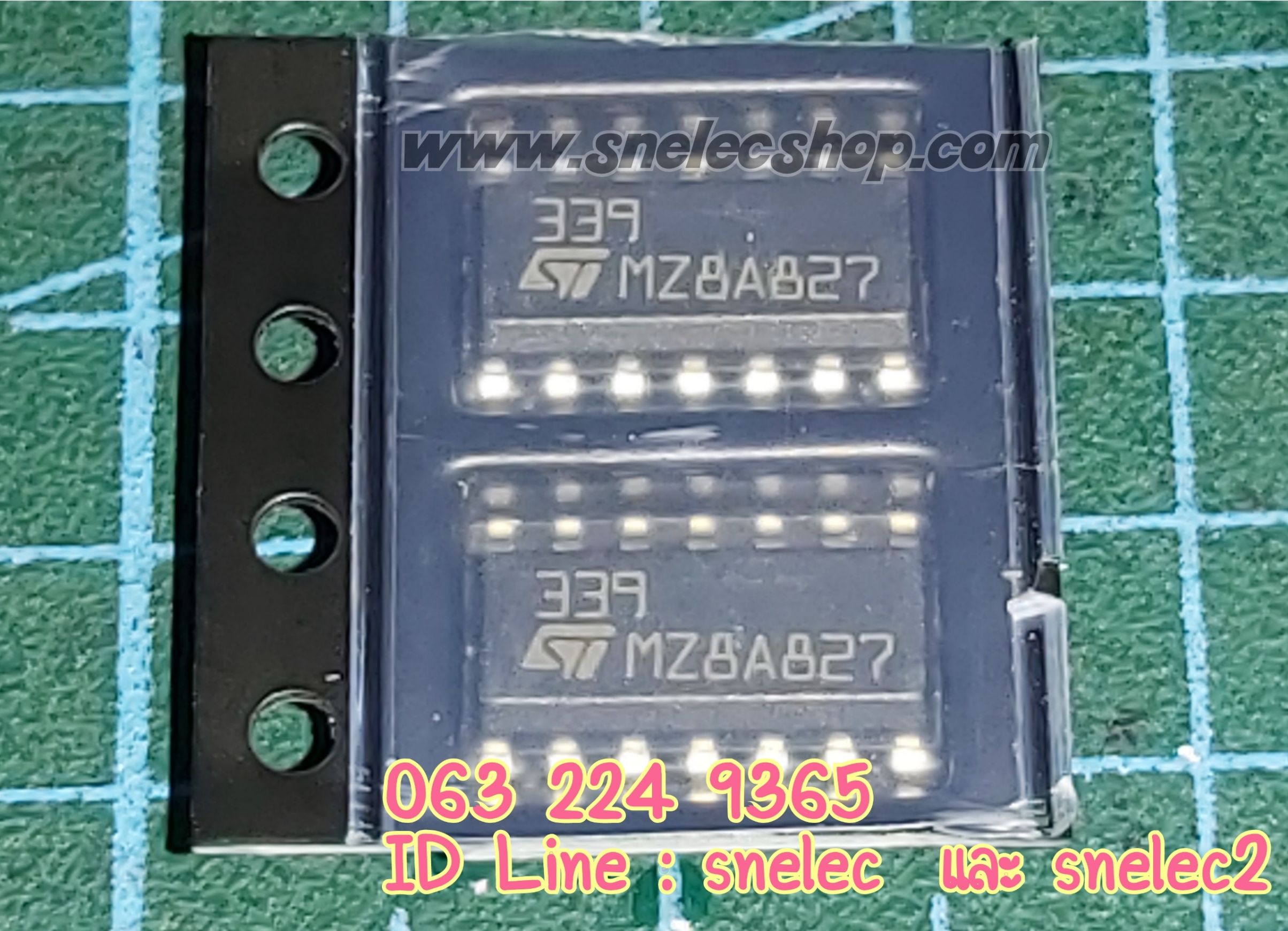

LM339DT ,LM139,A LM239,A - LM339,A

Quad Open Collector Comparator
Low Supply Current(1.1mA), Input Common-Mode
Voltage Range include Ground.
■ WIDE SINGLE SUPPLY VOLTAGE RANGE OR DUAL SUPPLIES FOR ALL DEVICES : +2V TO +36V OR ±1V TO ±18V
■ VERY LOW SUPPLY CURRENT (1.1mA) INDEPENDENT OF SUPPLY VOLTAGE (1.4mW/comparator at +5V)
■ LOW INPUT BIAS CURRENT : 25nA TYP
■ LOW INPUT OFFSET CURRENT : ±5nA TYP
■ LOW INPUT OFFSET VOLTAGE : ±1mV TYP
■ INPUT COMMON-MODE VOLTAGE RANGE INCLUDES GROUND
■ LOW OUTPUT SATURATION VOLTAGE : 250mV TYP; (Io = 4mA)
■ DIFFERENTIAL INPUT VOLTAGE RANGE EQUAL TO THE SUPPLY VOLTAGE
■ TTL, DTL, ECL, MOS, CMOS COMPATIBLE OUTPUTS
